All our Products are RoHs compliant !

About us

Our group is Chinese Manufacturer which owns 3 factories and 4 workshops:
Export items:
1. LED diodes
2. Cooling modules
3. Heatsinks
4. LCD modules
Domestic market:
5. Multimeters
6. Connectors + cables
7. Switches
Factories are located in Jiangsu and Zhejiang provinces in China.

New Arrival

Rainbow/Multicolor/Tri-color
LED Pricelist   How to Order

LED Module

LM-60X10     LED Backlight Series:
LM-60X10     LED Backlight Series:
  • The series of products, which use mirror aluminum for substrate. The products have high brightness, long life, a variety of power, easy installation, general size, which are especially suitable for indoor and outdoor lighting products, etc.
  • High brightness, high reliability, long life
  • Light angle: 120°
  • Typical color temperature: 6500K/5000K/4000K/3500K/3000K/2700K
  • Ra: 80+
  • Through the LM-80 certification
  • In line with the EU ROHS standard
LM-60X10 LED Backlight Series

SMD LED
Order No. Chip Wave
   lenght
(nm)		 Electro–optical
characteristics		 2Ø1/2 Half
intensity
angle (°)
Raw
mater.		 Emited
color		 Vf(V) lv@20mA
(mcd)
Typ. Max.
TOP LEDs (PLCC) 2.8 x 3.5 x 0.8mm
PLCC2835-W6-1W GaInN/
GaN		 White
4730-13000K		 --- 3.2 3.6 120lm@300mA 120°
PLCC2835-W3-1W GaInN/
GaN		 White
2580-4730K		 --- 3.2 3.6 95lm@300mA 120°

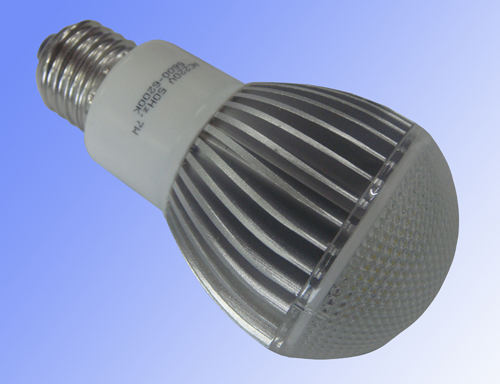

G60 PA LED Bulb
3mm Bi-Color(Red/Yellow Green) LEDs
Order No. Color Wave
lenght
(nm)		 Electro–optical
characteristics		 2Ø1/2 Half
intensity
angle (°)
Vf(V) lv
(mcd)
Typ. Max.
330RG5C-CC
Common Cathode

Datasheet		 Red/Yellow Green
Water Clear		 Red 620-630 2.1 2.6 1120 30°
Green 560-575 800
330RG5D-CC
Common Cathode

Datasheet		 Red/Pure Green
Diffused		 Red 620-630 2.1 2.6 550 30°
Green 560-575 400
Common Anode available, MOQ = 5K
5mm Bi-Color(Red/Yellow Green) LEDs
530RG5C-CC
Common Cathode

Datasheet		 Red/Yellow Green
Water Clear		 Red 620-630 2.1 2.6 1560 30°
Green 560-575 1100
530RG5D-CC
Common Cathode

Datasheet		 Red/Pure Green
Diffused		 Red 620-630 2.1 2.6 750 30°
Green 560-575 500
Common Anode available, MOQ = 5K
5mm Blinking Bi-Color (Red/Pure Green) LED
530RG2C-F2

Datasheet		 Red/Pure Green
Water Clear		 Red 620-630 3.0 4.5 550~770 30°
Pure Green 520-530
RGB Power LED (3W)
Order No. Chip Wave
lenght
(nm)		 Electro–optical
characteristics		 2Ø1/2 Half
intensity
angle (°)
Raw
mater.		 Emited
color		 Vf(V) Flux
(mcd)
Typ. Max.
E12RGB-3W
Datasheet		 GaAlInP Super Red 620~630 2.5 3.5 80 lm @700mA 120°
GaInN Pure Green 520~535 3.5 4.5 120 lm @700mA
GaInN Blue 455~465 3.5 4.5 30 lm @700mA
